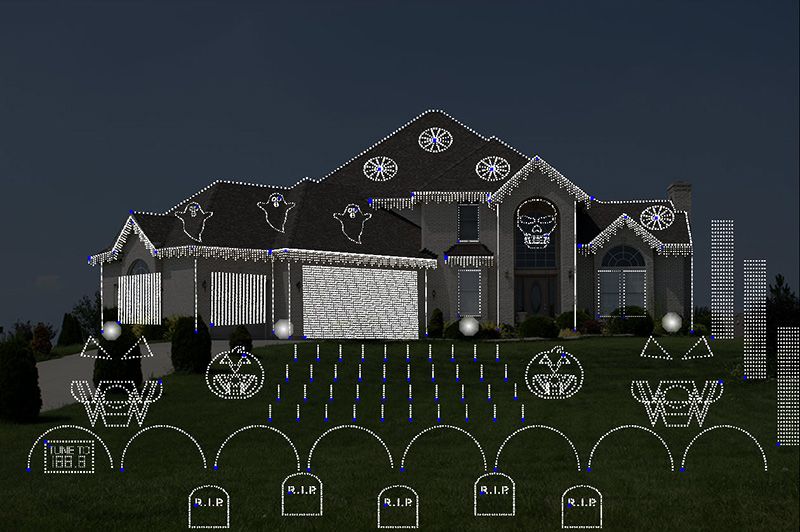

Support > Layouts > Halloween Pro V2 Layout

Looking for the Pro V1 layout? Click here to view previous layout.



LOR Items Network LOR ID Controller Dip Switch Settings
Standard 32 Layout Regular 01-02 CTB16PC Set with Hardware Utility
RGB Dumb Pumpkin Left Regular 04 CMD24D 0 0000 0100
RGB Dumb Pumpkin Right Regular 05 CMB24D 0 0000 0101
RGB Pixel Tombstones 1-5 Regular 06 Pixie 0000 0110
RGB Pixel Pumpkin Left Regular 0B Pixie 0000 1011
RGB Pixel Pumpkin Right Regular 0D Pixie 0000 1101
RGB Pixel Floods Regular 0F Pixie 0000 1111
RGB Singing Face Left Regular 16 Pixie 0001 0110
RGB Singing Fade Right Regular 19 Pixie 0001 1001
RGB Singing Skull Regular 1C Pixie 0001 1100
RGB Pixel Stakes Regular 1F Pixie 0001 1111
RGB Dumb Legacy Regular 25 CMB24D 0 0010 0101
RGB Pixel Arches Regular 26 Pixie 0010 0110
RGB Ghosts Regular 40 Pixie 0100 0000
RGB Spinners Regular 44 Pixie 0100 0100

Intelligent DMX Items Universes Universe Reserved *
RGB Bulbs 11-17 11-20
RGB Icicles 21-29 21-29
RGB Pole P1 80-81 80-81
RGB Pole P2 82-83 82-83
RGB Pole P3 83-84 83-109
RGB Matrix M1 110-114 110-114
RGB Matrix M2 114-118 114-118
RGB Matrix M3 119-131 119-149

* Reserved universes can be used to expand motion effects to additional props.
